Alex Othman jr's Solidworks Pliers Project

Alex Othman Jr's Second Real Object Solidworks Project V1

Q: What object are you measuring?

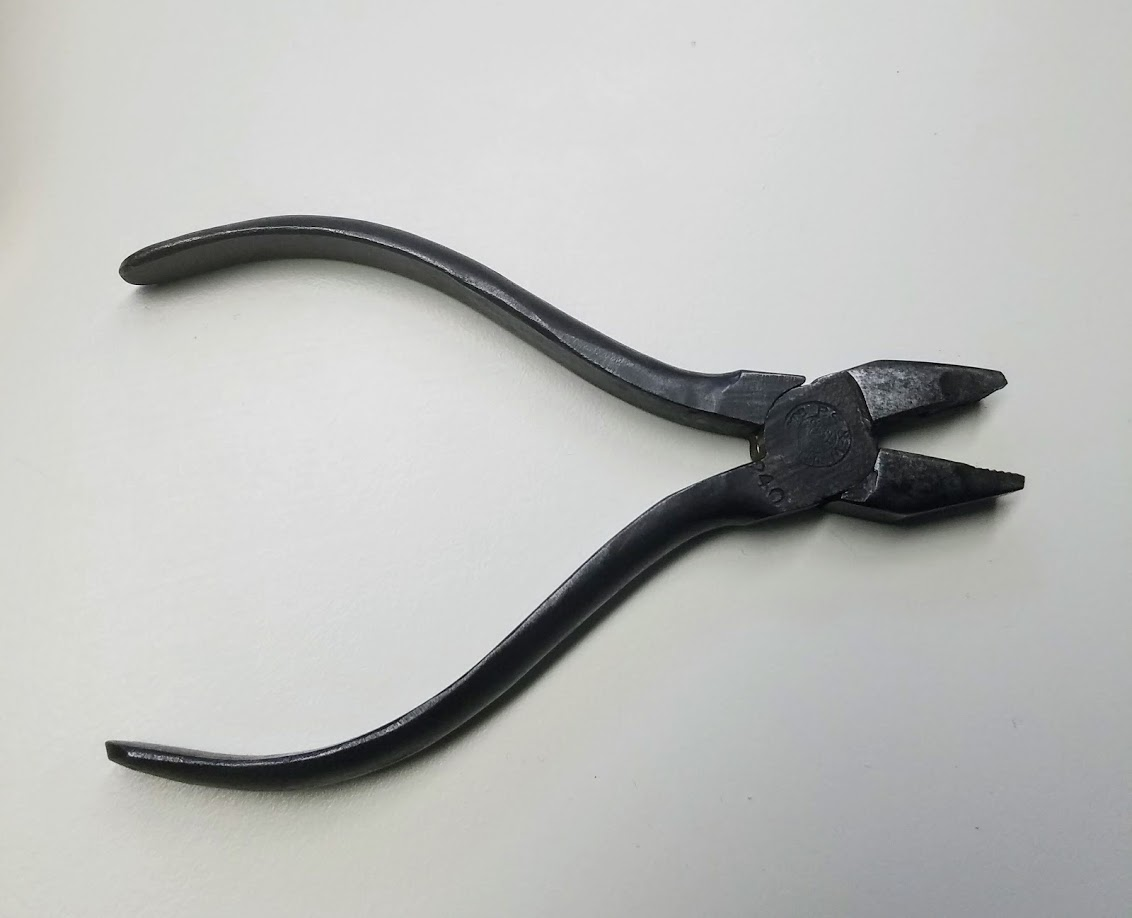

Alex: The object is set of vintage PEXTO “Pliers". Next we measured the object to put it into SolidWorks and construct it.

Q:How did you go from the object in your hand to putting it in SolidWorks?

Alex: We used a measurement tool that’s called dial caliper, which measures the different side of an object by inches, then we put it on a paper.

Q: What is SolidWorks?

Alex: SolidWorks is this program that allows you to make 3D objects in an app with the right measurements.

Q: What did you start off with to make the pliers?

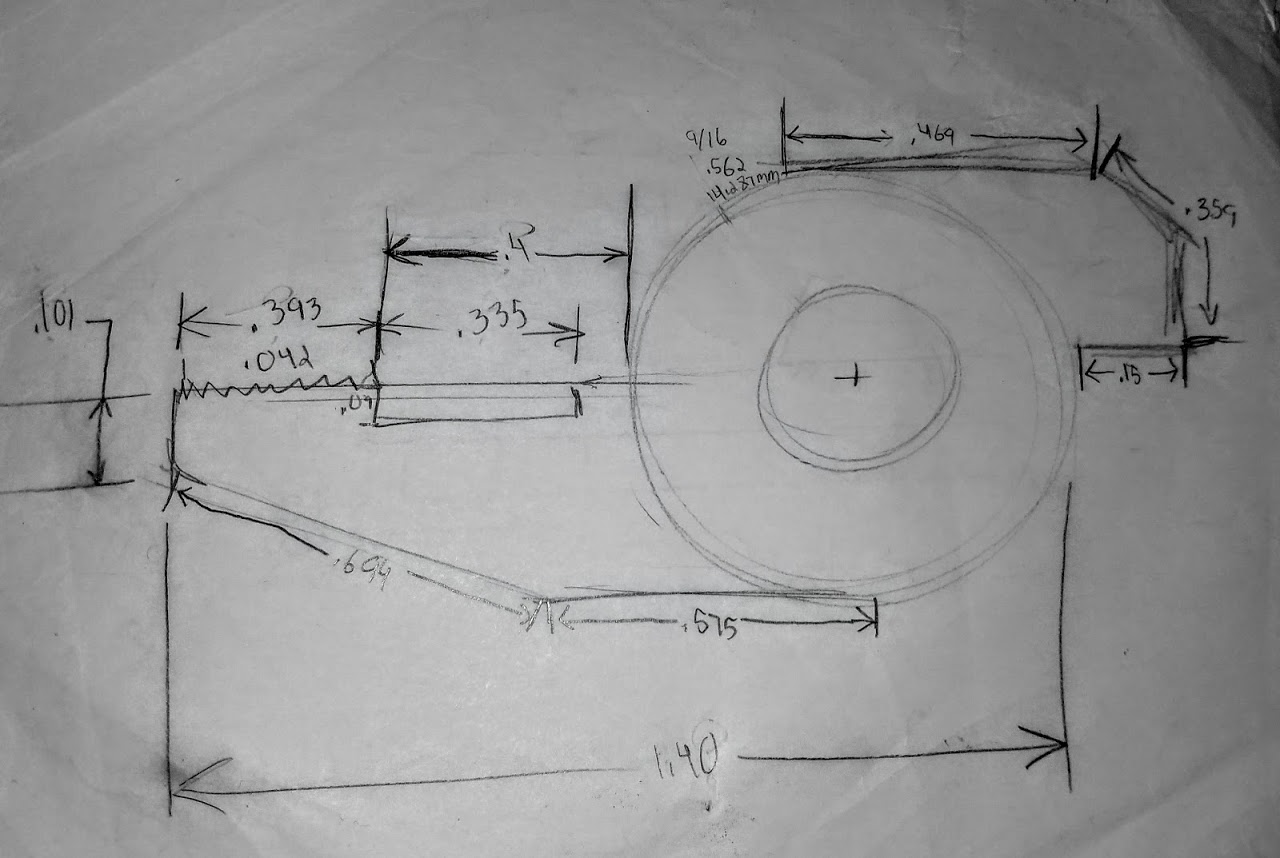

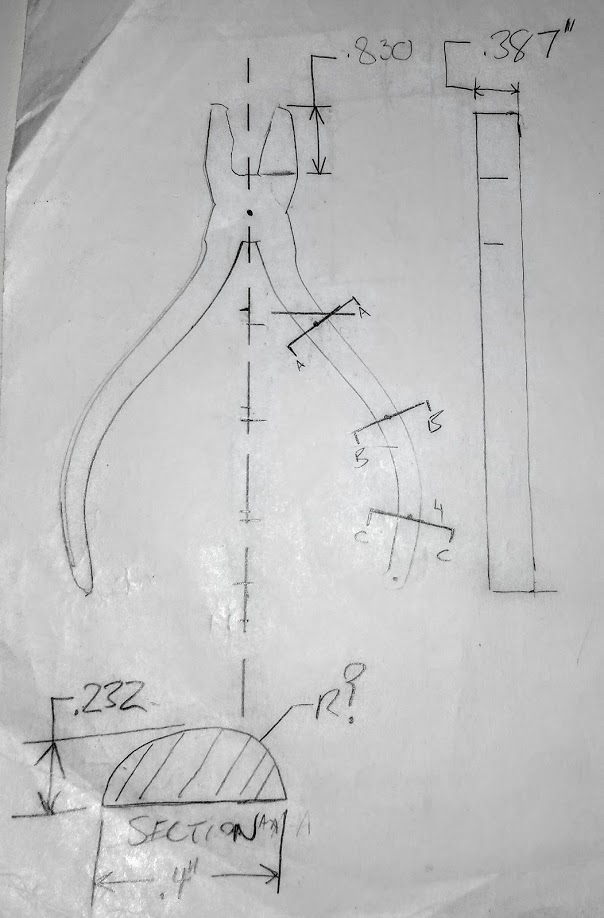

  Alex: Well first we started with a sketch of the item that we were using and put all the measurements onto a paper for when we used SolidWorks.

Q:What does it look like in SolidWorks?

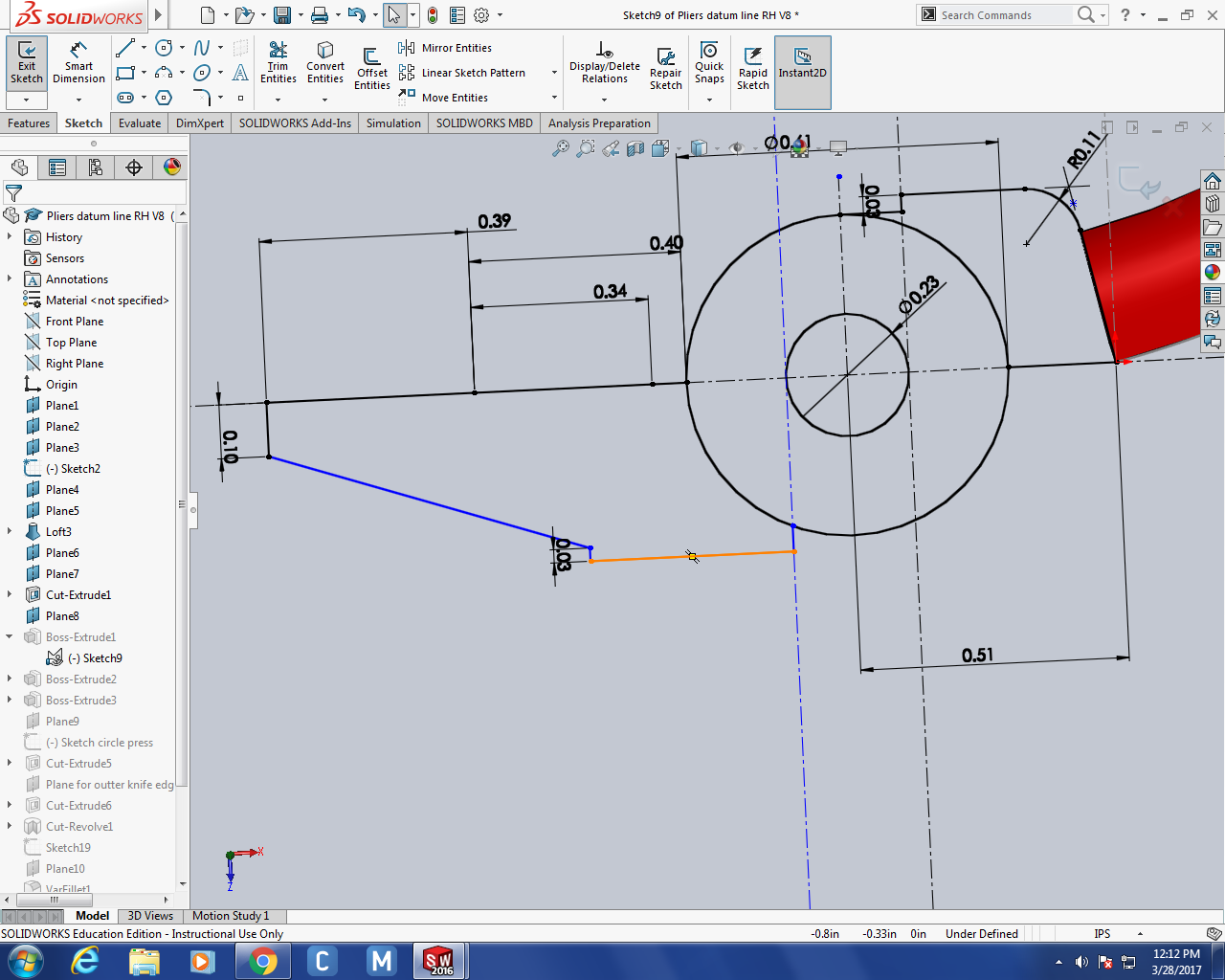

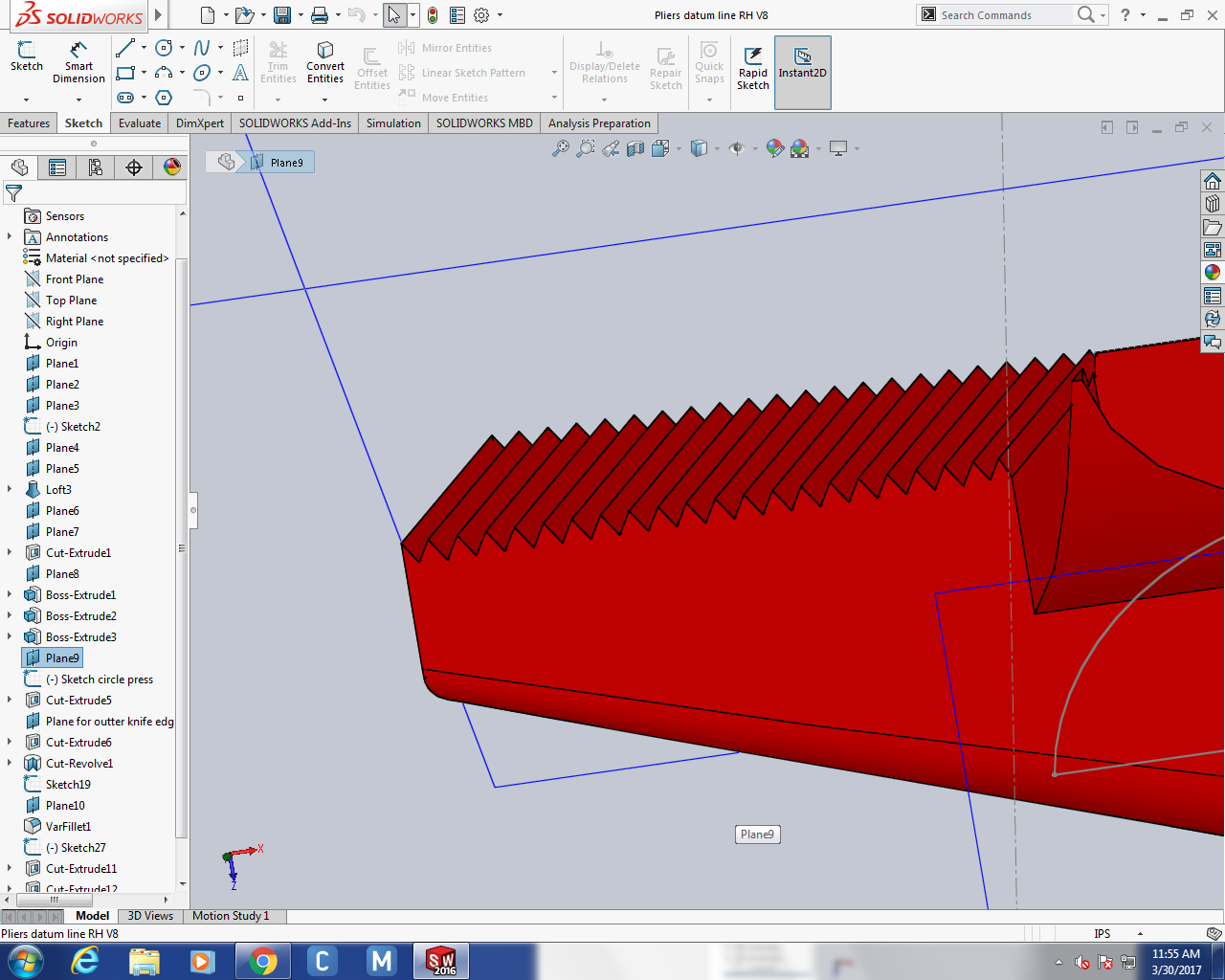

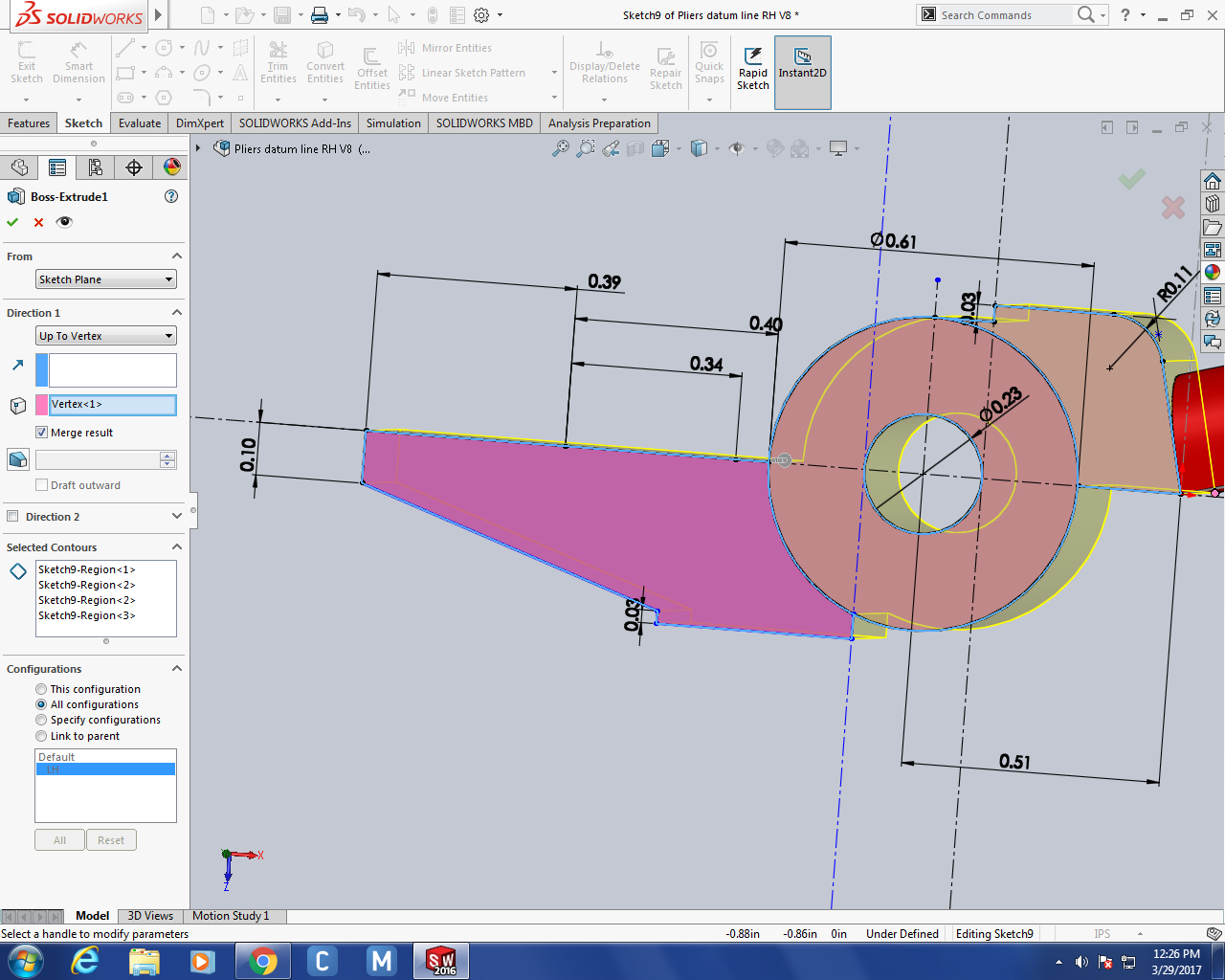

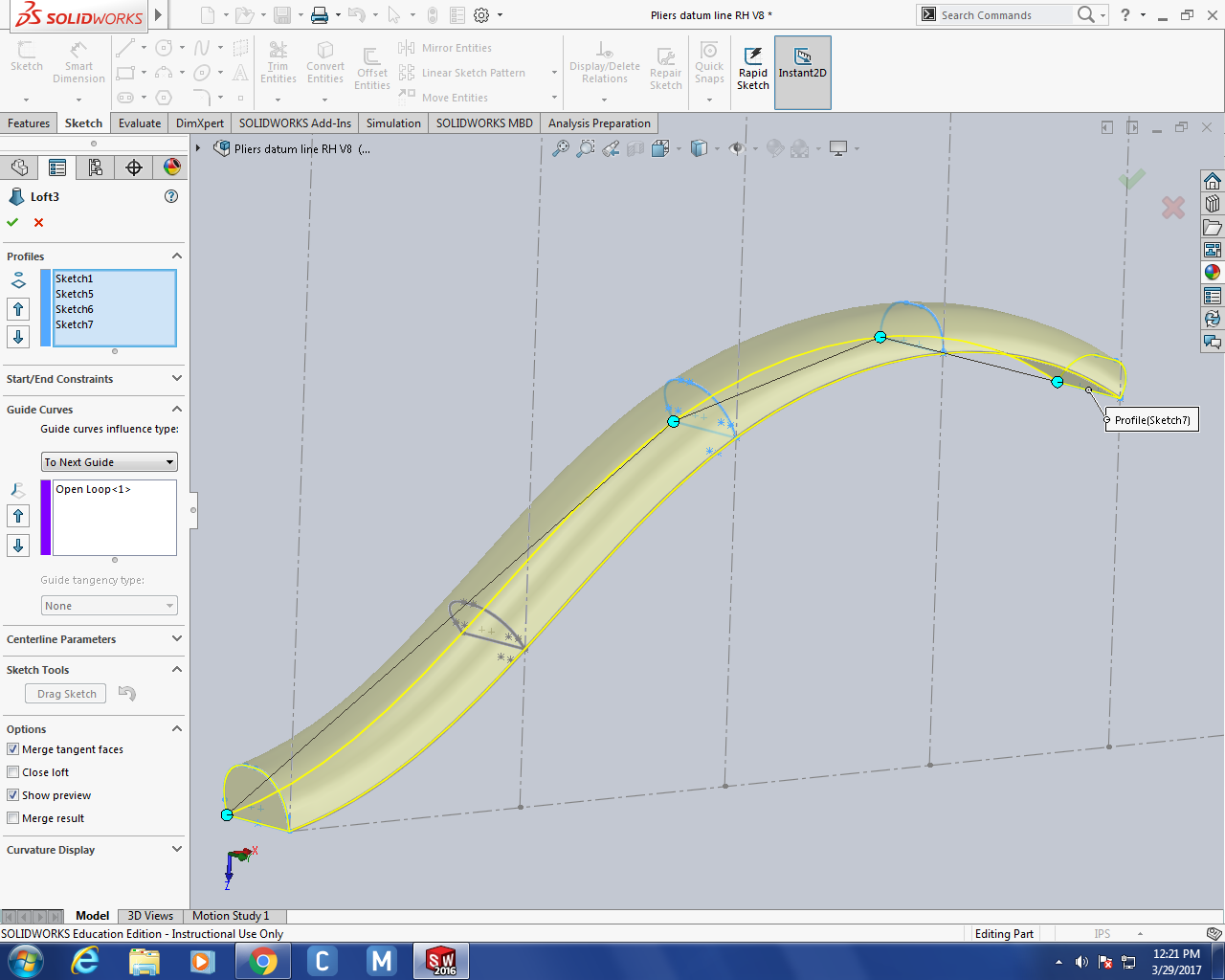

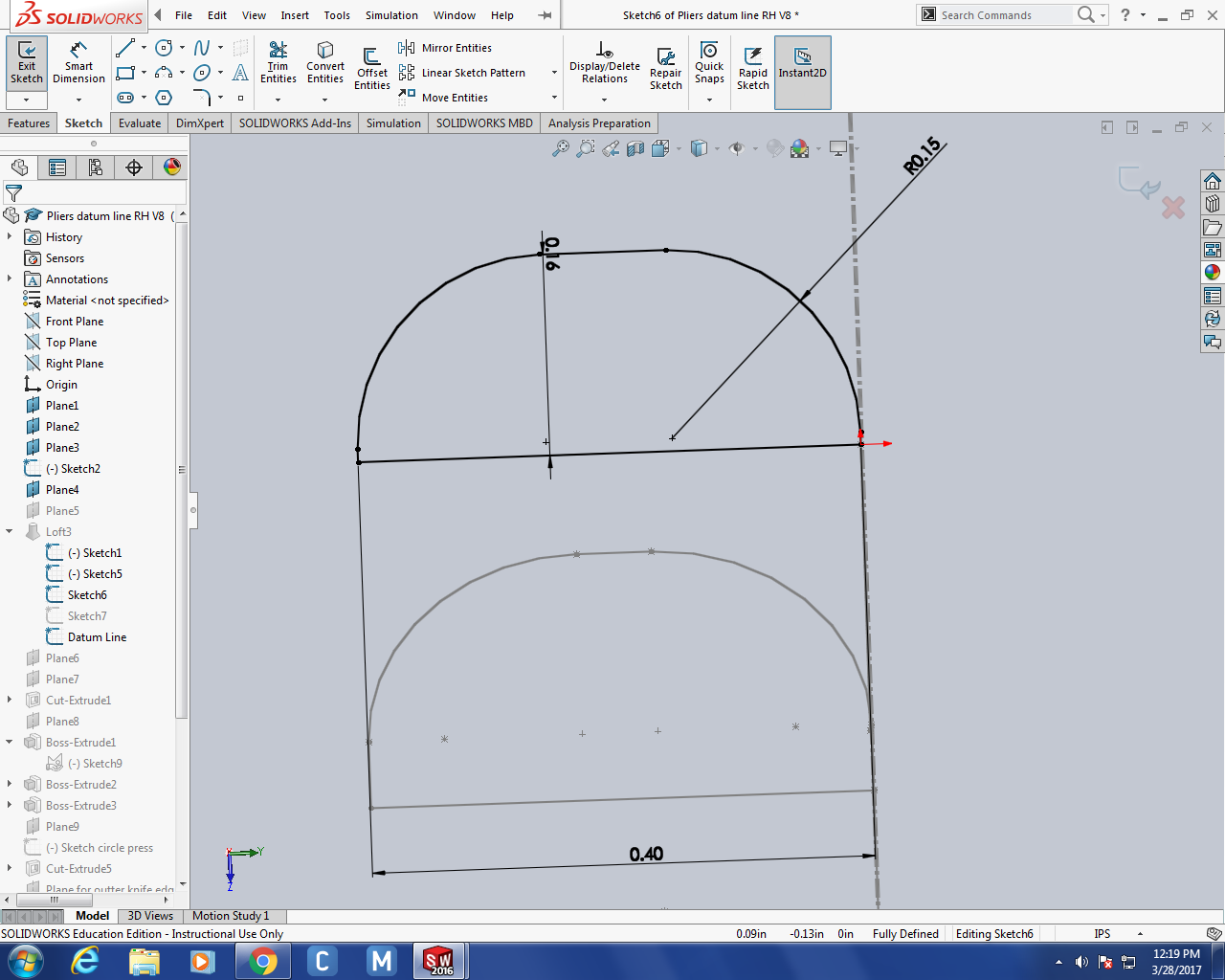

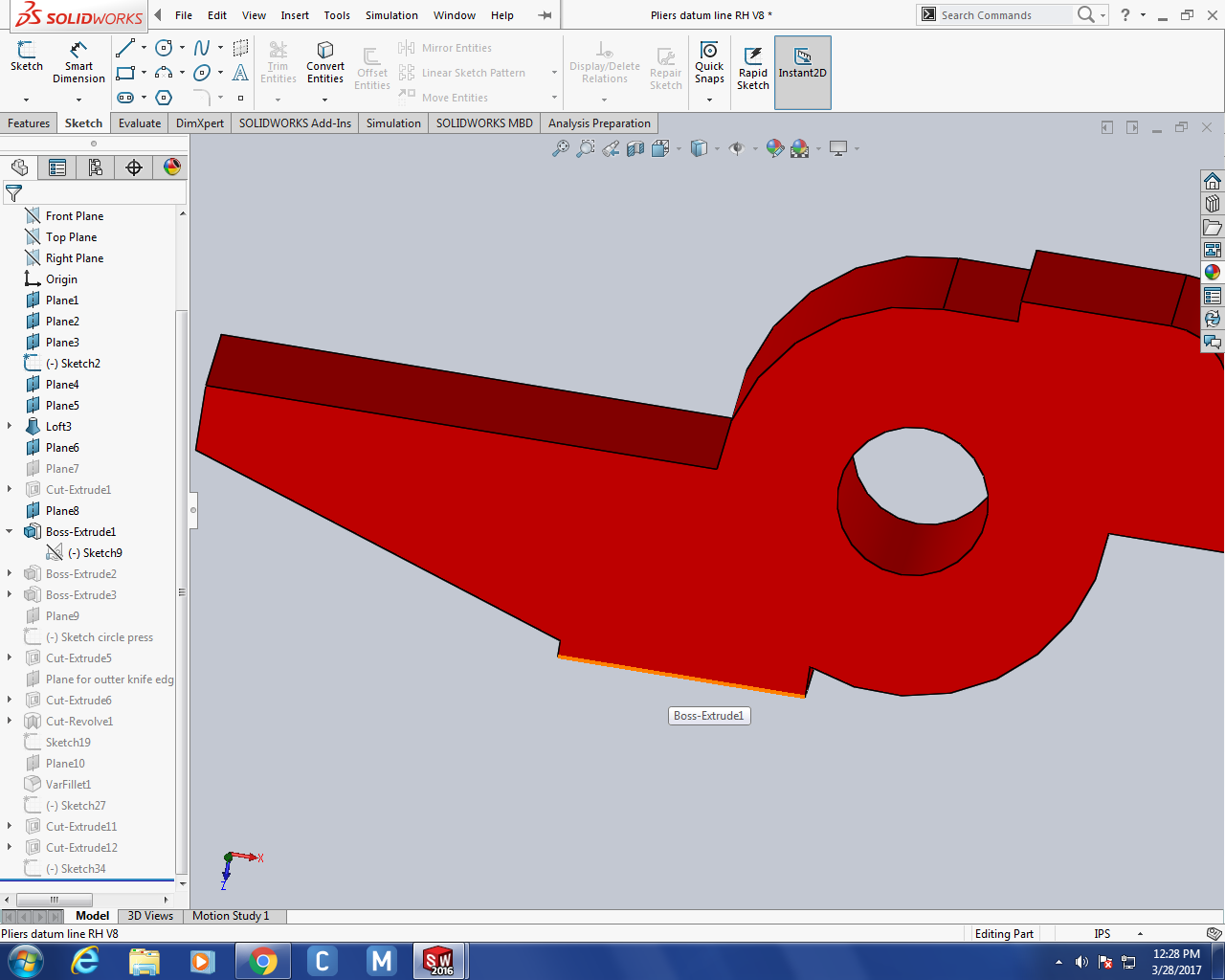

Alex: these are the sketches and measurements of how we made the handle and the other parts of the pliers like the jaws, the cutter, and the pivot point.Q: What did you do after you had all the sketches in place.Alex:I extruded the front part of the pliers and lofted the handles.Q: What is a Loft? and what is an Extrude?Alex: A loft is a feature in SolidWorks that is used to make a 3D object by following sketches. An extrude is also a features that is used to make 3D objects, but is it adds material to a sketch rather than follow it.Q: What else did you do to the pliers in SolidWorks?Alex: I added the teeth of the pliers by cut extruding it with a sketch I made.Q: What do the pliers look like when they are all together?   Alex: When both parts of the pliers are put together, they look like a real 3D pair of pliers you would buy at a hardware store.Q: Can you give us other samples of what’s possible in SolidWorks?

Alex: I have made things like a Lego car from different parts and shapes of Lego pieces.

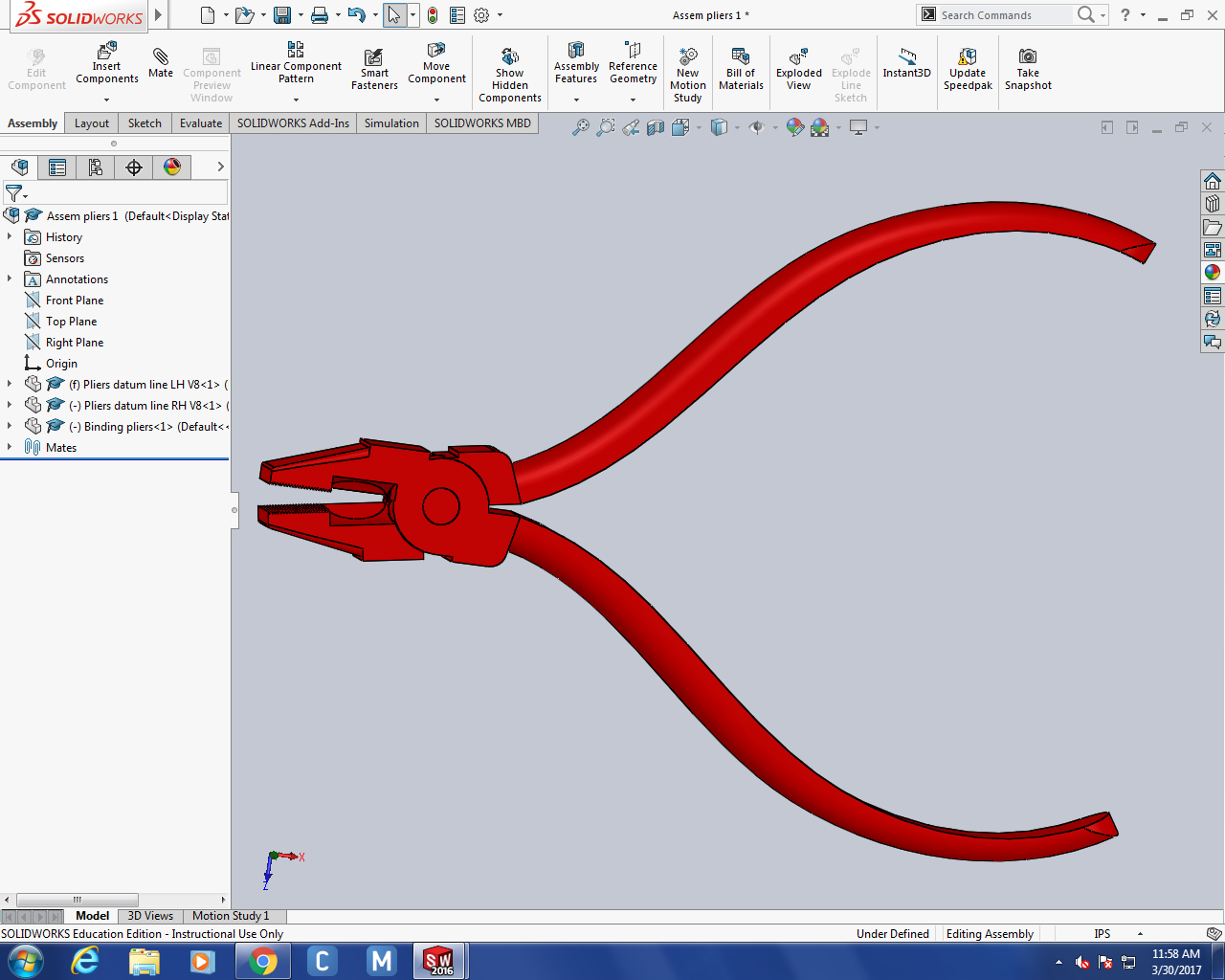

Q: Dude that is so cool! Did you make the wheels turn?

Alex: Yes, you are able to make the wheels from the car move.

Thank you for reading my blog. if you enjoyed it, then check out my other blog and also check out my grabcad.
